TH-AUD4AU4

Detailed：

Item Number:	TH-AUD4AU4	Instructions: 1. Set the power switch off, when the LED off. Plug the surge protector into a standard grounding wall receptacle by fully inserting the plug and ensure that there are no exposed conductors. 2. Make sure electronic equipment is turned off before plugging into the surge protector outlets. Do not use extension cords to connect equipment to the surge protector. 3. Set the power switch to the “ON” position. The surge protector will now be providing power and surge protection. 4. Connected equipment can now be turned on. 5. The on/off switch controls the power to all four AC outlets.
Description:	4 USB 4 Socket Power Board with Switches
Rating:	Rating: 10A / 240V / 2400W / 50Hz
Outlets:	4
Joule Rating:	525J
USB Ports:	4
USB Output:	5V / 4.5A / 22.5W
Surge Protected LEDs:	Yes
Response Time:	<1 nanosecond

Product Description:

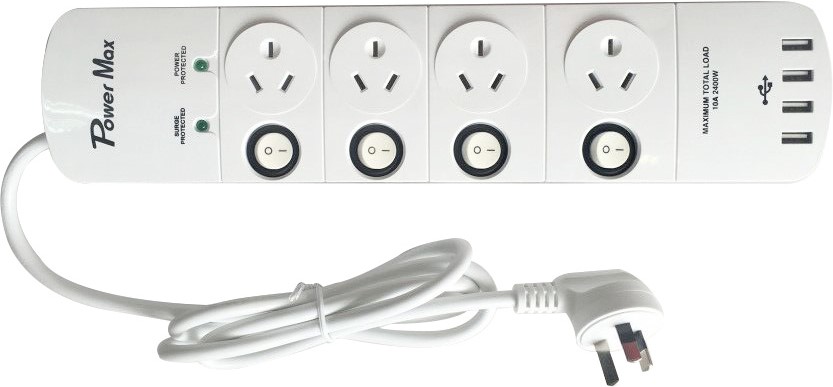

4 Outlet Power Board with Individual Switches & 4 USB Ports (4.5A) - Surge & Overload Protected - Surge Protector

This power board converts a single AC outlet to 4 extra AC outlets and 4 USB Ports. It is equipped with both surge and overload protection to keep your connected devices safe. Each AC outlet has its own power switch allowing you to turn on or off each connected AC device individually. The power board also features four USB ports to charge your mobile devices such as phones, smart watches, fitness bands etc with a total current output of up to 4.5A. Protects your electronic devices connected to the AC outlets or the USB ports from dangerous power surges, spikes, lightning strikes, and AC contamination. 4 surge protected USB ports to charge all your USB devices. Eliminates the need to connect separate USB AC adapters.

FEATURES:

• Certification: SAA

• 4 Grounded Outlets and 4 USB surge protection power board, fulfill all your power needs.

• 5V / 4.5A / 22.5W Dual USB ports fast-charge one tablet or two smartphones at the same time.

• Surge protected: 525 Joules

• Individual on/off switches

• 1m/2m/3m...Power cord puts power where you need it.

• 10A Resettable circuit-breaker for easy recovery from an overload.

• With mounting channels allow you to securely anchor to walls or furnitures.

• Includes easy grip plug, Tangle-free cord.

• The designer cable and right angle plug brings a new level of style and convenience to your home or office.

• Ideal for small appliances and general household use

• Response time: Less than 1 nanosecond

• Device Type: Surge protector - external

• Weight: 500 g

• Input Voltage: AC

• Input Connectors: 1 x power Australian 3-pin

• Output connectors: 4 x 3 pin power connector - 10 A4 x 4 pin USB Type A

• Dimensions (WxDxH): 33.627 cm x 7.627 cm x 3.336 cm

• Manufacturer Warranty: 3 year warranty

• Color：White / Black

• Power Output Connectors Details: 4 x 3 pin power connector - 10 A4 x 4 pin USB Type A

• Max Electric Current: 10 A

• Surge Suppression: Yes

• Surge Energy Rating: 525 Joules

• Cables Included: Power cable - integrated

• Features: 4 x on/off switch, overload protection

• Service & Support: Limited warranty - 3 year

• Width: 33.627 cm, Depth: 7.627 cm, Height: 3.336 cm

USB Charging

• 4.5 Amp total output allows you to charge up to two tablet or four smartphones at full capacity at the same time. Recharge your device at a maximum speed of 4.5 Amp when connected to a single port.

• Charge up to 2 tablet or 4 smartphones at full capacity at the same time.

• The USB ports are used to charge portable electronic devices only. There is no data transfer capability.

• Smart technology: delivers optimal amperage for the device and stops charging when the device is full.

NOTE:

Check the blue “Surge Protected” indicator light periodically. Blue indicator light signals devices are surge protected. If the blue “Surge Protected” indicator light stops glowing, the surge protective components have expired — though power will still be supplied to the outlets, now unprotected. To ensure the protection of your electronics, the surge protector should be replaced.

Designed and certified to Australian standards

FOR INDOOR USE ONLY
